Product Name

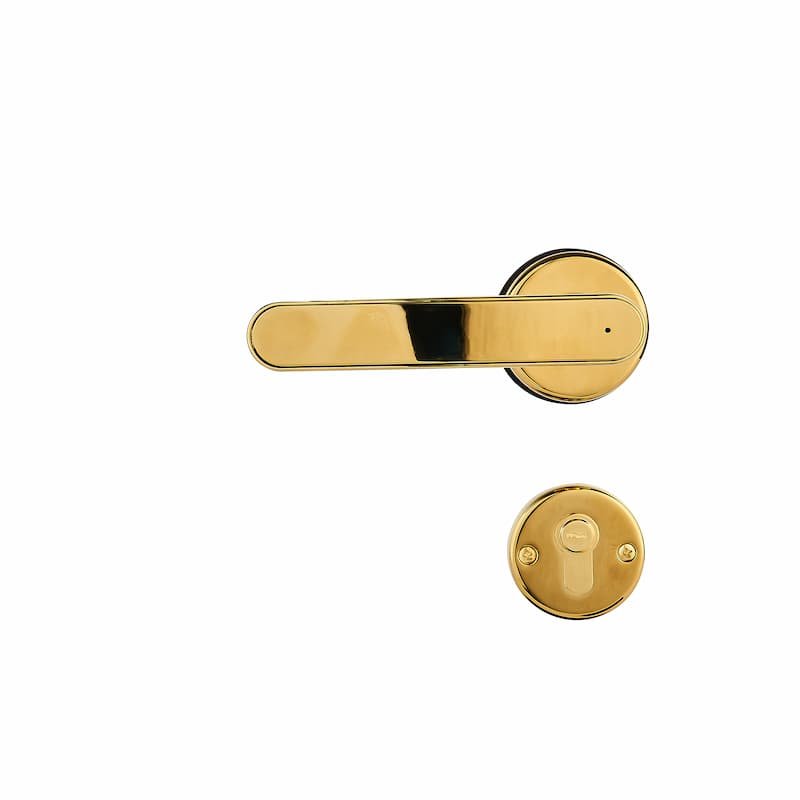

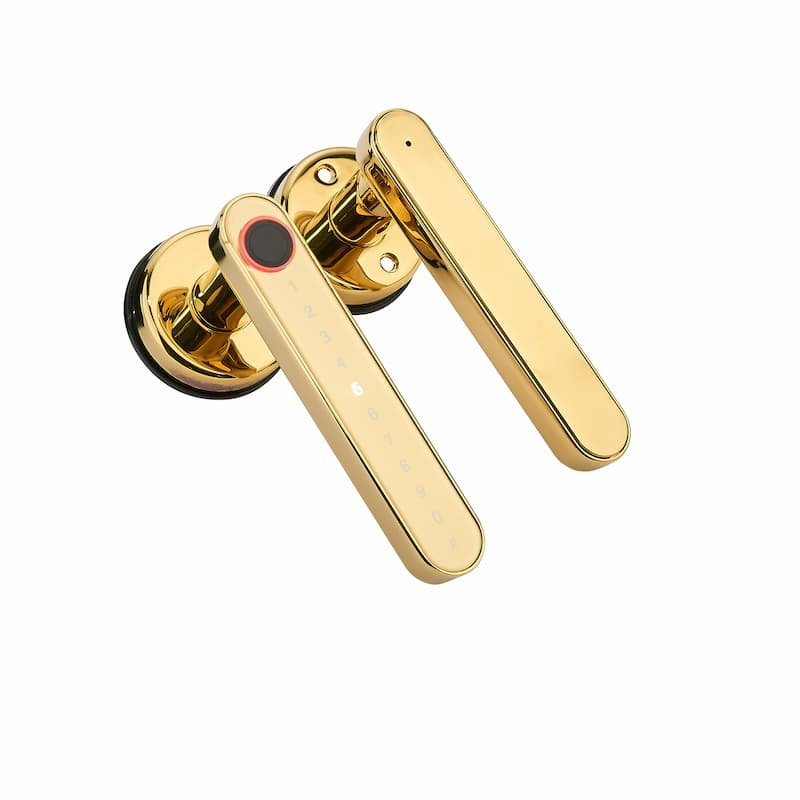

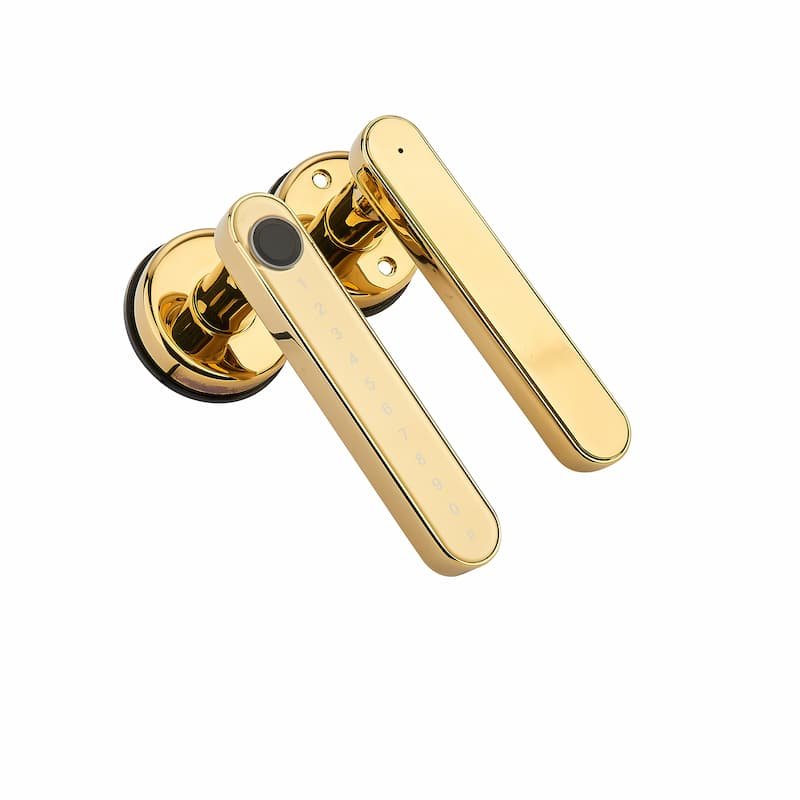

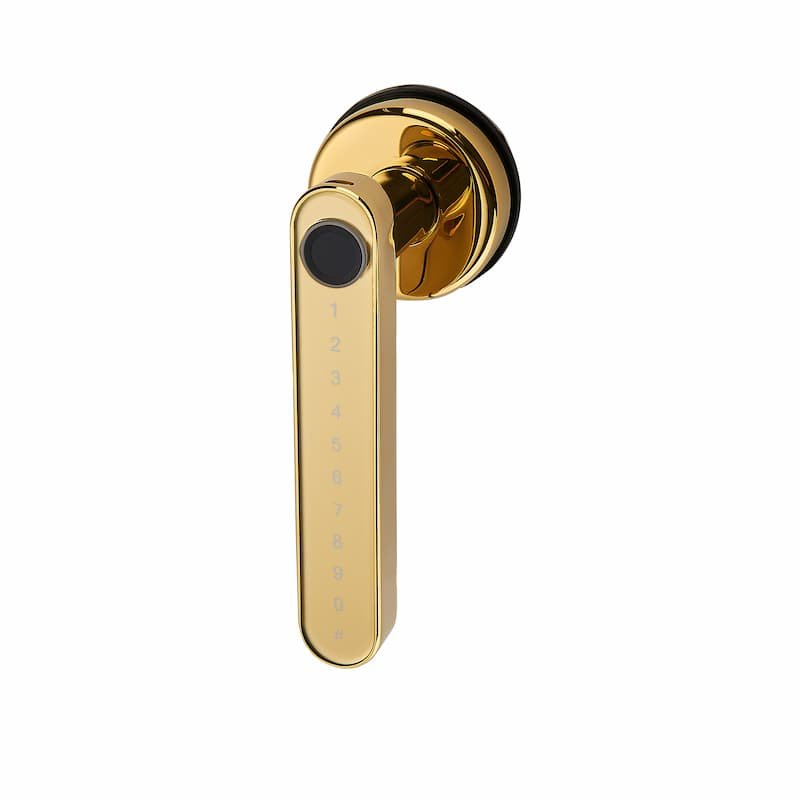

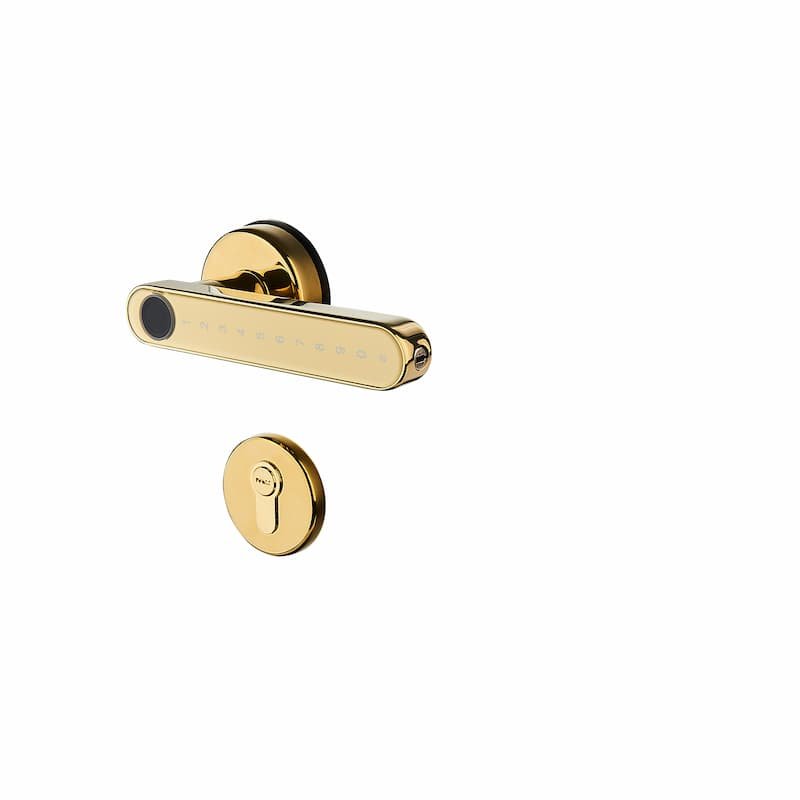

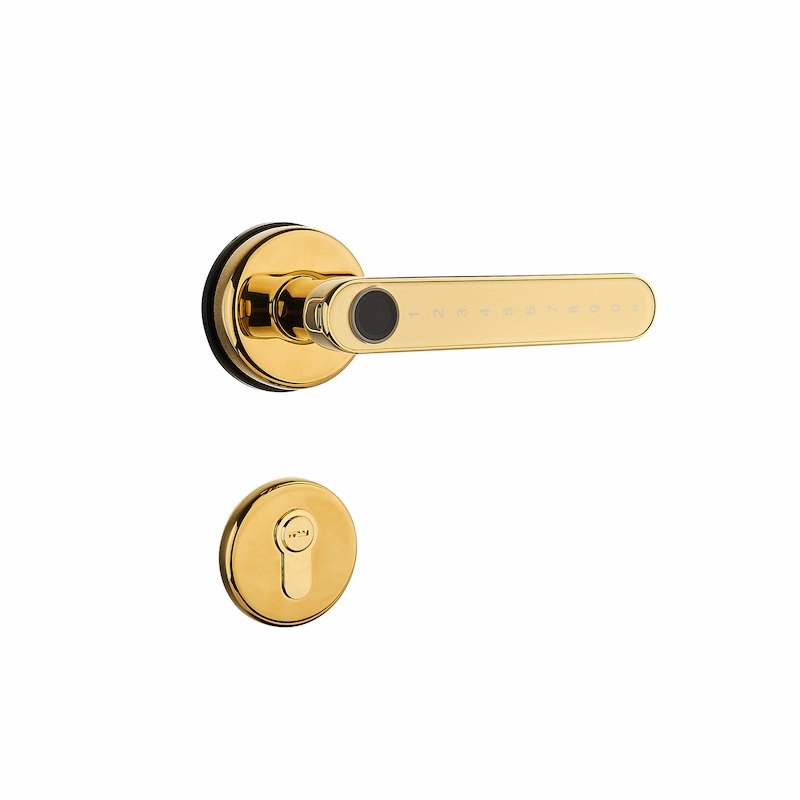

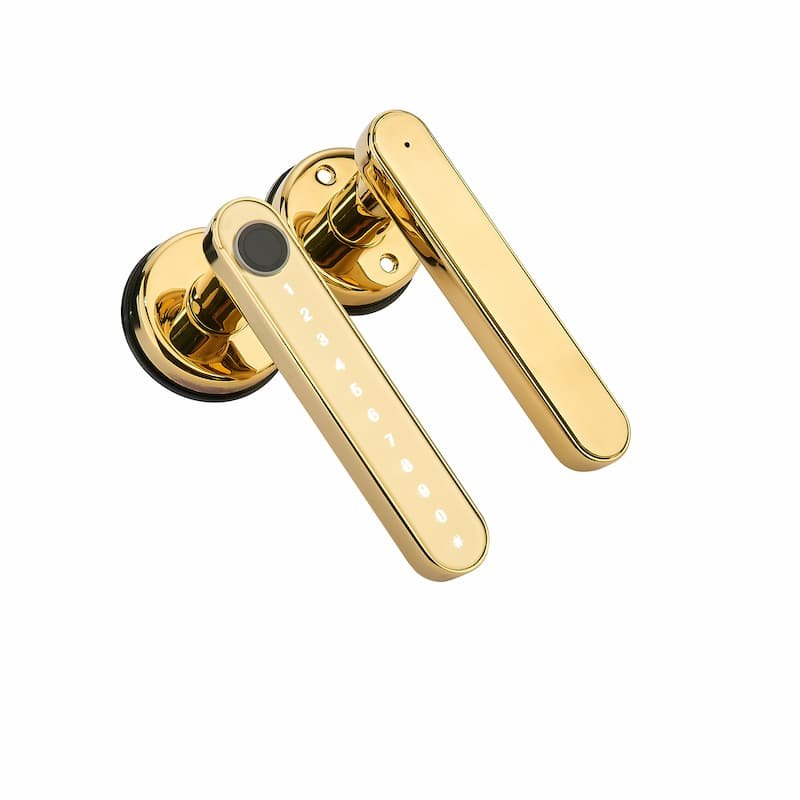

S1 Split Semi-Automatic Smart Lever Lock
Material
- Lock Housing: Zinc Alloy
- Touch Panel: Tempered Glass
- Surface Treatment:IMD
Function
- Unlock Methods: Fingerprint, Password, IC Card, Mechanical Key
- Optional:TUYA Wifi / TT Lock APP Remote Control & Remote Controller
- Dummy anti-peep code function
- Low power reminder(≤4.8V)
- Wrong Operation Error Warning
- Anti-break alarm
- Anti-static & Anti-electromagnetic Interference (anti-hacker device)
- Type C USB emergency power supply, support power bank emergency unlock
- Note: Without voice prompt function
Specifications
- Model: S1
- Lock Type: Split Semi-Automatic Smart Lever Lock
- Lock Cylinder: Class C
- Power Supply: 4 PCS AAA Batteries
- Working Voltage: 4.8V~6.5V
- Applicable Door Thickness: 35–50 mm
- Suitable Mortise: 4558 / 5572 / 4585 / 6085 / 4550 / Single Latch 60/70mm
- Panel Dimension: Front 157*62*20 mm | Back 157*62*20 mm
- Color Option: Black, Nickel, Golden
- Working Temperature: -25℃ ~ 70℃
- Working Humidity: 45%~90%
- Fingerprint Performance: FRR ≤1.0%; FAR ≤0.001%
- User Capacity Fingerprint:100 Users | Password:150 Users | IC Card:100 Users
- Single Set Gross Weight: ≈1.10 KG
- Single Box Size: 218*79*199 mm
- Carton Spec: 10 units/carton; Carton size 420*230*425 mm; Full carton weight ≈12.0 KG
Standards
- Pass anti-static testing
- Support anti-electromagnetic interference (EMI)
- Equipped with Class C security lock cylinder
Note: Waterproof grade not marked, recommended for indoor use only.
Application
- Indoor wooden doors, bedroom doors, office interior doors, apartment doors with thickness 35–50 mm
- Suitable for family residences, offices, rental housing, homestays
Key Advantages
- Slim straight handle design, elegant appearance, multiple color options (Black, Nickel, Golden)
- Zinc alloy housing with IMD surface + toughened glass touch panel, scratch-resistant and premium texture
- Ultra-wide working temperature range (-25℃~70℃), adaptable to cold and high-temperature areas
- Multiple unlocking ways to meet daily diversified access demands
- Two optional intelligent solutions: TUYA Wifi or TT Lock APP remote management
- Wide compatibility, supports multiple lock bodies including single latch 60/70mm
- Anti-electromagnetic interference design, effectively defend illegal unlocking by hacker tools
- Type C emergency power interface to avoid lockout caused by exhausted batteries
Customization / OEM Service
- Custom housing color and IMD surface treatment
- Optional PCB mainboard: TUYA Wifi or TT Lock solution
- Remote control can be added as optional accessory
- Laser engraving customer logo on lock panel and packages
- Custom user manual, color box and outer carton design
- Function parameter adjustment to satisfy different regional market demands
