Product Name

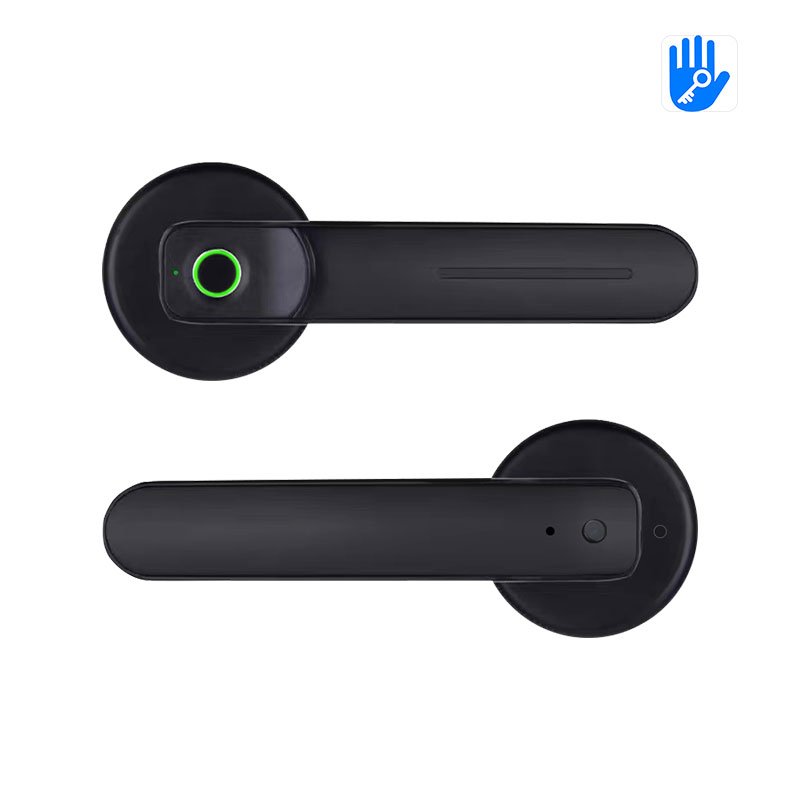

130 Split Semi-Automatic Smart Lever Lock
Material
- Lock Housing: Zinc Alloy
- Touch Panel: Zinc
- Surface Treatment: IMD
Function
- Unlock Methods: Fingerprint, Mechanical Key
- Optional:TUYA Wifi / TT Lock APP Remote Control & Remote Controller
- Low power reminder(4.8±0.2V)
- Wrong Operation Error Warning
- Anti-break alarm
- Anti-static & Anti-electromagnetic Interference (anti-hacker device)
- Type-C USB emergency power supply, Support Power Bank Emergency Unlock
- Note: No voice prompt, Dummy code function is not available
Specifications
- Model: 130
- Lock Type: Split Semi-Automatic Smart Lever Lock
- Lock Cylinder: Class C
- Power Supply: 4 PCS AAA Batteries
- Working Voltage: 6.0±0.3V
- Applicable Door Thickness: 30–50 mm
- Suitable Mortise: 5050 / 4558 / Single Latch 60/70mm
- Panel Dimension: Front 145*55*(…)mm, Back 145*55*(…)mm

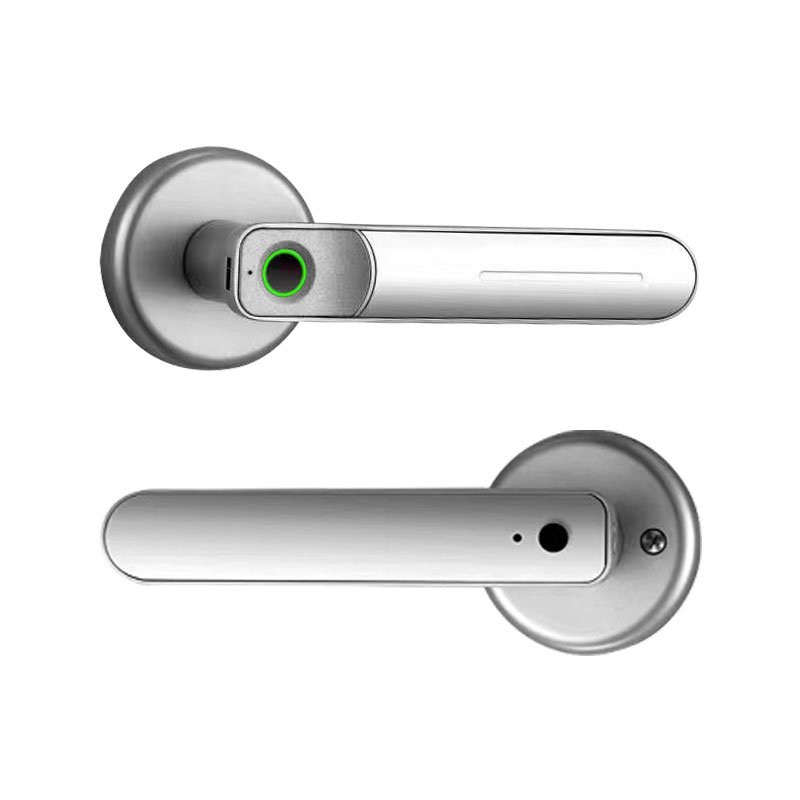

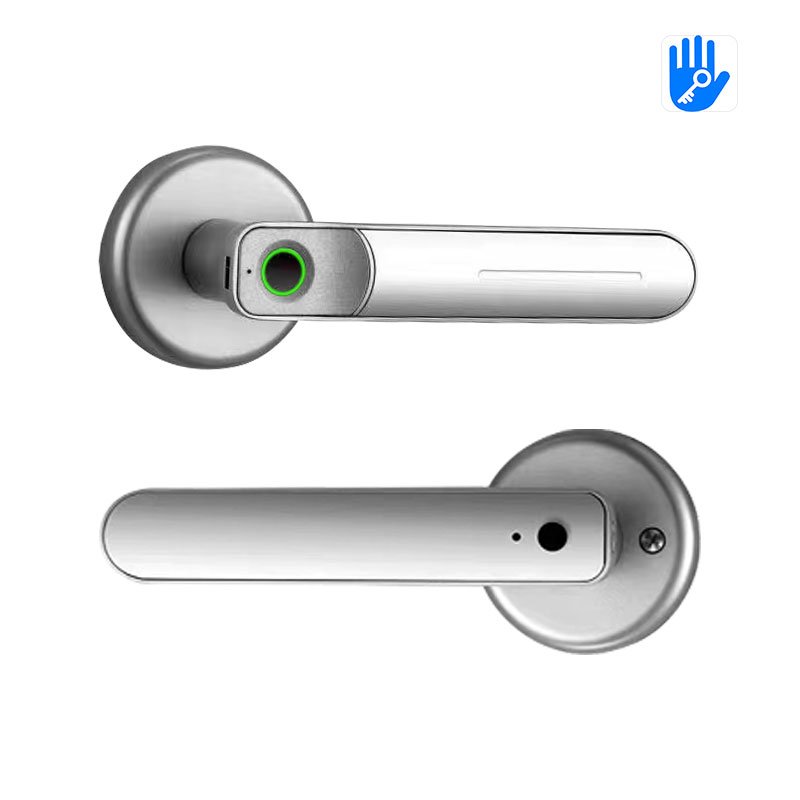

- Color Option: Black, Silver
- Working Temperature: -20℃ ~ 60℃
- Working Humidity: 20%~90%
- Fingerprint Performance: FRR＜0.15%; FAR＜0.00004%
- User Capacity Fingerprint:50 Users
- Single Set Gross Weight: ≈0.96 KG
- Single Box Size: 21875180 mm
- Carton Spec: 20 units/carton; Carton size 525*375*390 mm; Full carton weight ≈19.4 KG
Standards
- Pass Anti-static Test
- Support anti-electromagnetic interference (EMI)
- Equipped with Class C security lock cylinder Note: Waterproof grade not marked, recommended for indoor use only.
Application
- Indoor wooden doors, office doors, bedroom doors, interior doors with thickness 30–50 mm
- Suitable for residences, offices, apartments, rental rooms
Key Advantages
- Compact split handle design, minimalist appearance, specially designed for interior doors
- Zinc alloy body with IMD surface craft, corrosion-resistant and comfortable touch
- Lightweight whole set, convenient packaging and transportation
- Two optional intelligent PCB solutions: TUYA Wifi or TT Lock APP remote management
- Compatible with multiple lock bodies including single latch 60/70mm
- Anti-electromagnetic interference design to prevent illegal unlocking by hacker tools
- Type-C emergency power supply to avoid lockout caused by exhausted batteries
- Large quantity per export carton, effectively reduce unit logistics cost
Customization / OEM Service
- Custom housing color and IMD surface treatment
- Optional PCB mainboard: TUYA Wifi or TT Lock solution
- Remote control can be added as optional accessory
- Laser engraving customer logo on lock panel and packages
- Custom user manual, color box and outer carton design
- Function parameter adjustment to satisfy different regional market requirements
