Product Name

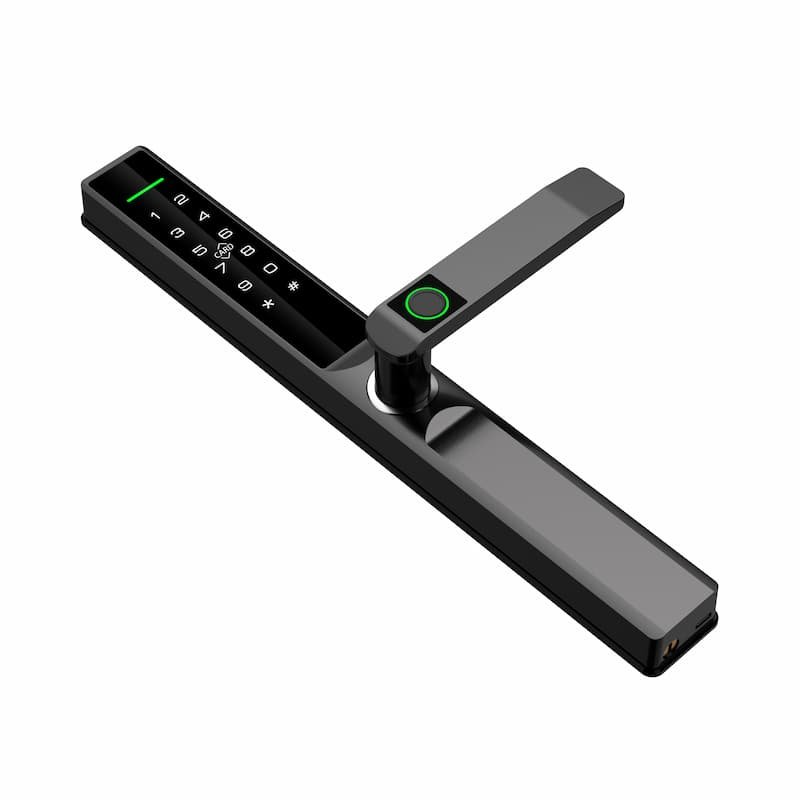

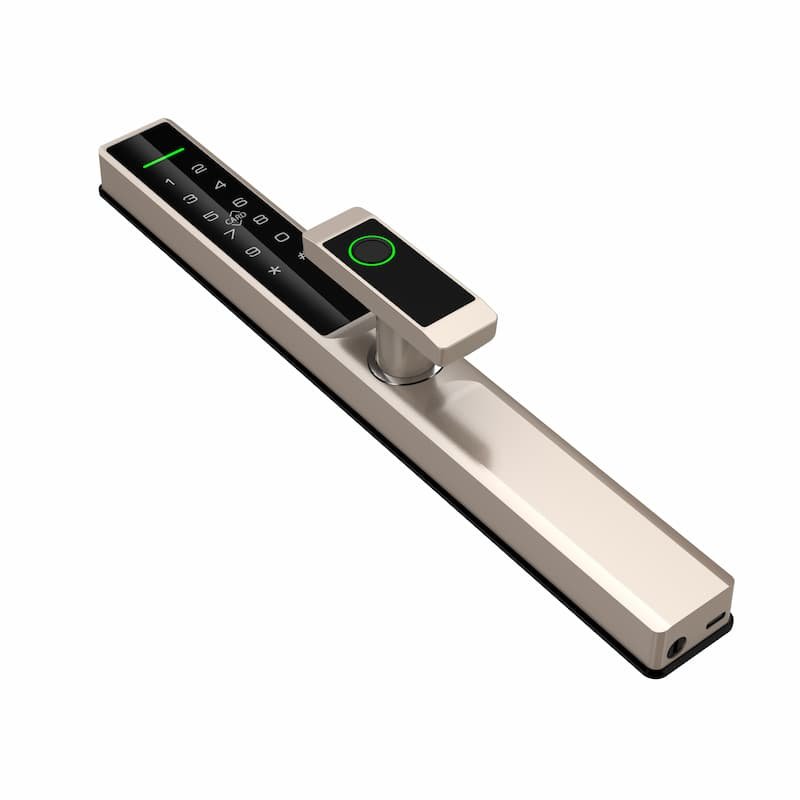

L106 Semi-automatic Smart Lever Lock
Material
- Lock Housing: Aluminum Alloy
- Touch Panel: Tempered Glass
- Surface Treatment: Spray Painting Process
Function
- Unlock Methods: Fingerprint, Password, IC Card, Mechanical Key
- Optional:TUYA Wifi / TT Lock APP Remote Control & Remote Controller
- Dummy anti-peep code function
- Low power reminder
- Wrong Operation Error Warning
- Anti-break alarm(Optional)
- Anti-static & Anti-electromagnetic Interference (anti-hacker unlock)
- Type-C USB emergency power supply, Support Power Bank Emergency Unlock
- Language: Chinese / English; TT Lock version additionally supports Vietnamese, Indonesian, Russian
Specifications
- Model: L106
- Lock Type: Semi-automatic Smart Lever Lock, supports long handle & short handle
- Lock Cylinder: Bottom Hidden Cylinder
- Power Supply: 4 PCS AAA Batteries
- Working Voltage: 4.5V~6.5V
- Applicable Door Thickness: 40–120 mm
- Suitable Mortise: 2085/2885/3585/4585 and multiple types sliding lock bodies
- Panel Dimension: Front 330*37*67 mm | Back 330*37*67 mm
- Color Option: Black
- Waterproof Grade: IPX5
- Working Temperature: -30℃ ~ 60℃
- Working Humidity: 20%~93%
- Fingerprint Performance: FRR＜0.1%; FAR＜0.005%
- User Capacity Fingerprint:100 Groups | Password:199 Groups | IC Card:199 Groups
- Single Set Net Weight: ≈1.06 KG
- Single Set Gross Weight: ≈1.62 KG (without mortise)
- Single Box Size: 445*195*115 mm
- Carton Spec: 10 units/carton; Carton size 59*47*41 cm
Standards
- Pass Anti-static Test
- Support anti-electromagnetic interference (EMI)
IPX5 waterproof rating, can be used in sheltered outdoor environments
Application
- Suitable for wooden doors, security doors, metal doors with thickness 40–120 mm · Scenarios: private residences, apartments, rental houses, villas; IPX5 waterproof allows installation under covered outdoor doorways
Key Advantages
- Aluminum alloy body + tempered glass touch panel, sleek texture and scratch resistance
- IPX5 waterproof performance, wider usage scenarios than ordinary indoor smart locks
- Bottom hidden lock cylinder design, effectively prevent technical unlocking
- Optional long handle / short handle to meet different door installation requirements
- Extra-long service life: handle opening lifetime ≥100,000 times, battery supports up to 5000 normal openings
- Two optional intelligent solutions: TUYA Wifi or TT Lock APP remote management
- Powerful compatibility, supports dozens of types of sliding lock bodies
- Wide working temperature range (-30℃~60℃), adapts to cold and high-temperature regions
- Type C emergency power supply to avoid lockout caused by dead batteries
Customization / OEM Service
- Custom housing color and spray painting surface treatment
- Optional PCB mainboard: TUYA Wifi or TT Lock solution
- Remote control can be added as optional accessory
- Laser engraving customer logo on lock panel and packages
- Custom user manual, color box and outer carton design
- Function parameter adjustment to satisfy different regional market demands
