Product Name (产品名称)

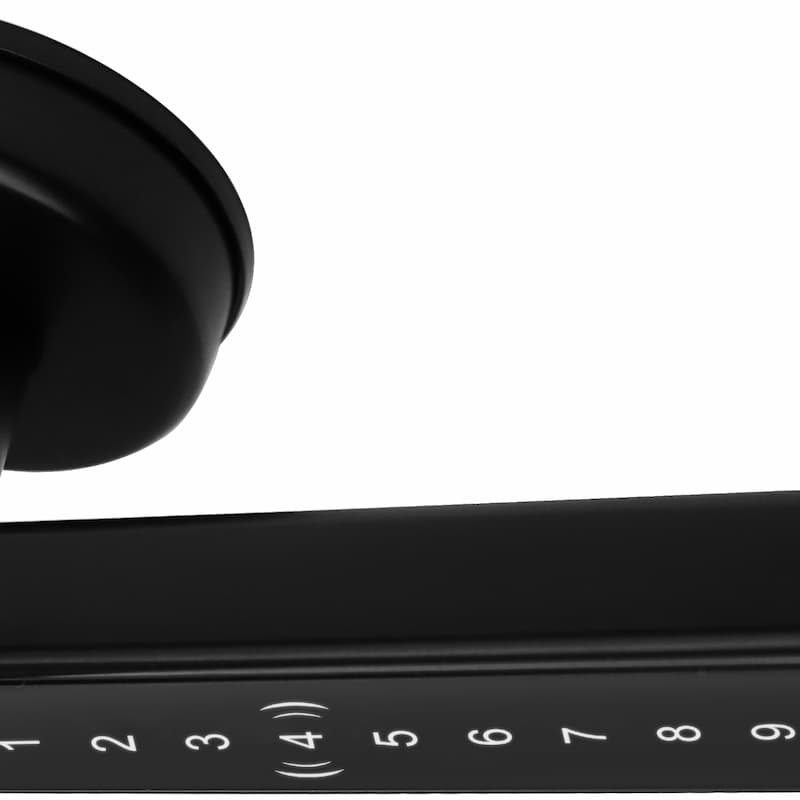

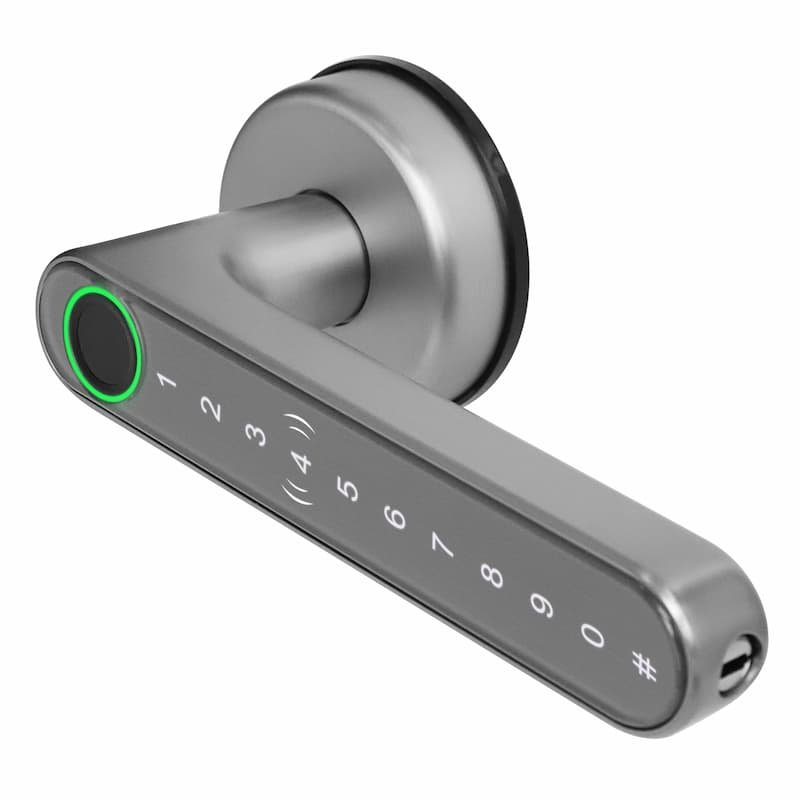

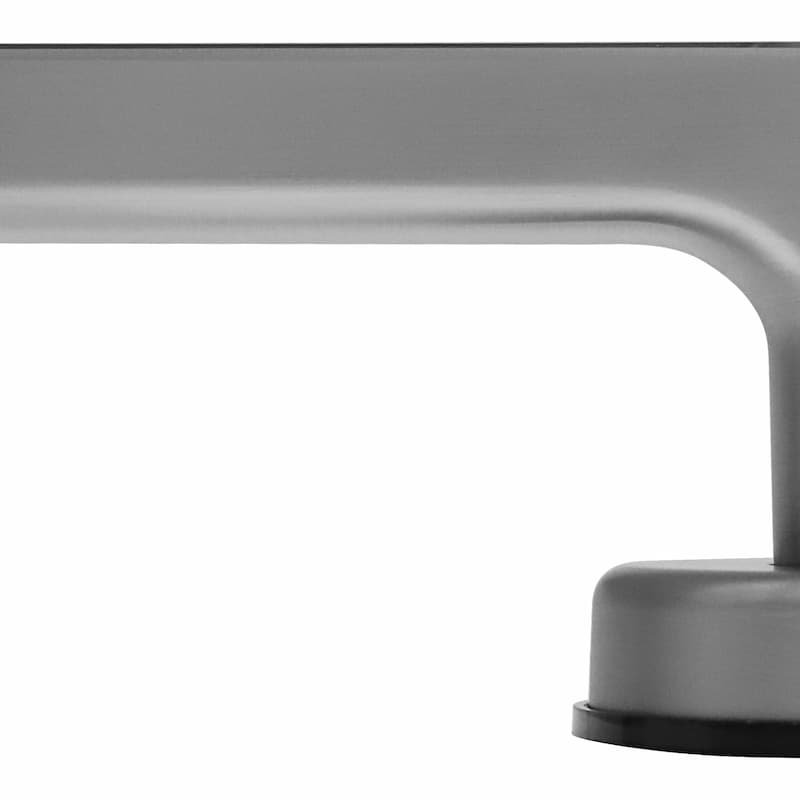

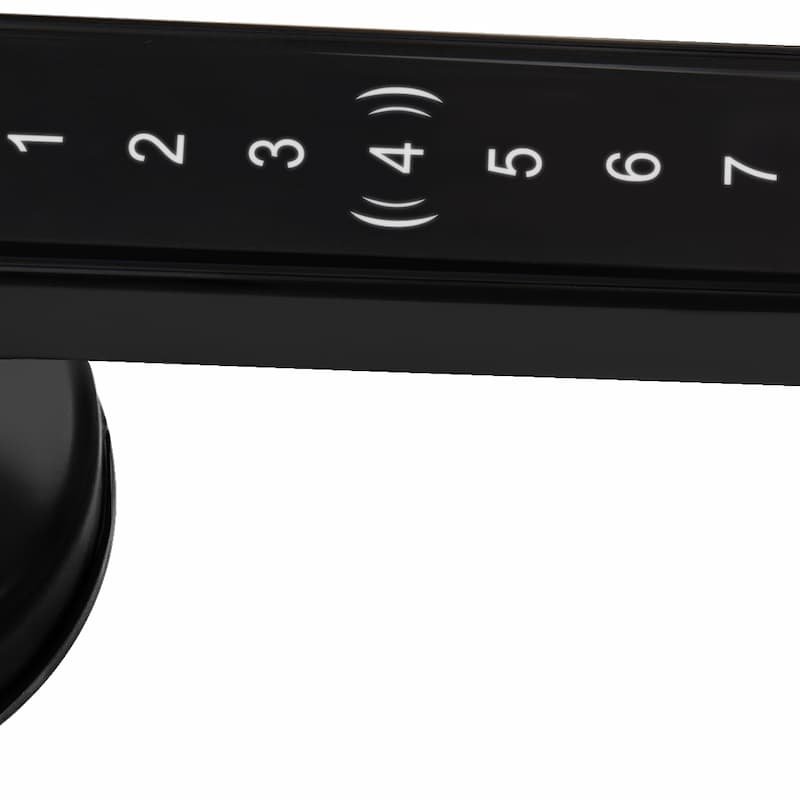

C6 Split Semi-Automatic Smart Lever Lock
Material
- Lock Housing: Zinc Alloy
- Touch Panel: Tempered Glass
- Surface Treatment: Zinc Alloy Electroplating
Function
- Unlock Methods: Fingerprint, Password, IC Card, Mechanical Key
- Optional:TUYA Wifi / TT Lock APP Remote Control & Remote Controller
- Dummy anti-peep code function
- Low power reminder(≤4.8V)
- Wrong Operation Error Warning
- Anti-break alarm
- Anti-static & Anti-electromagnetic Interference (anti-hacker device)
- Type C USB emergency power supply, support power bank emergency unlock
- Multi-language: English, Simplified Chinese, Traditional Chinese, Spanish and other 23 languages
Specifications
- Model: C6
- Lock Type: Split Semi-Automatic Smart Lever Lock
- Lock Cylinder: Class C
- Power Supply: 4 PCS AAA Batteries
- Working Voltage: 4.8V~6.5V
- Applicable Door Thickness: 35–50 mm
- Suitable Mortise: 4558 / 5572 / 4585 / 6085 / 4550 / Single Latch 60/70mm
- Panel Dimension: Front 157*62*20 mm | Back 157*62*20 mm
- Color Option: Black, Nickel, Golden
- Working Temperature: -10℃ ~ 60℃
- Working Humidity: 10%~90%
- Fingerprint Performance: FRR ≤1.0%; FAR ≤0.001%
- User Capacity Fingerprint:100 Users | Password:150 Users | IC Card:1000 Users
- Single Set Gross Weight: ≈1.55 KG
- Single Box Size: 218*79*199 mm
- Carton Spec: 10 units/carton; Carton size 420230425 mm; Full carton weight ≈12.0 KG
Standards
- Pass anti-static testing
- Support anti-electromagnetic interference (EMI)
- Equipped with Class C security lock cylinder Note: Waterproof grade not marked, recommended for indoor use only.
Application
- Indoor wooden doors, bedroom doors, office interior doors, apartment doors with thickness 35–50 mm
- Suitable for family residences, offices, rental housing, homestays
Key Advantages
- Elegant round base split handle design, modern minimalist style for interior doors
- Zinc alloy electroplated body + tempered glass touch panel, wear-resistant and high-grade texture
- Abundant color choices: Black, Nickel, Golden to match various door styles
- Huge IC Card storage capacity up to 1000 groups, ideal for homestays and apartments
- Two optional intelligent PCB solutions: TUYA Wifi or TT Lock APP remote management
- Wide compatibility, supports multiple lock bodies including single latch 60/70mm
- Global multi-language system, suitable for multinational overseas markets
- Anti-electromagnetic interference design to prevent illegal unlocking by hacker tools
- Type C emergency power interface to avoid lockout caused by exhausted batteries
Customization / OEM Service
- Custom housing color and electroplating surface treatment
- Optional PCB mainboard: TUYA Wifi or TT Lock solution
- Remote control available as optional accessory
- Laser engraving customer logo on lock panel and packages
- Custom user manual, color box and outer carton design
- Function parameter adjustment to meet different regional market demands
